Assembly
1

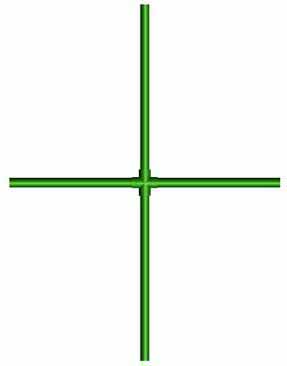

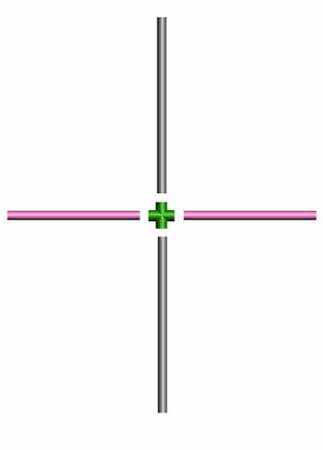

Step 1: Form
the Cross
Bar for top of tent. Use pieces A,
2, and 3.
 |
Goes
to:
|
 |
Step 2: Make Front
Brace for top. Use pieces B,
3, C, 3, and B.
 |
Connect pieces to look like this: |
 |
Step 3: Repeat Step 2 to make a Back
Brace for top. Use pieces B,
3, C, 3, and B.
Step 4: Make top Right
Side*.
Use pieces 2,
C, 4, D, and 3.
 |
Connect pieces to look like this: |
 |
Step 5: Make top Left
Side*. Use pieces 2,
C, 4, D, and 3.
 |
Connect pieces to look like this: |
 |
*Note that the right side and left
side are shown with the third "arm" of piece D
facing up. When these two sides are completed, they should be mirror
images of one another, not identical.
|
